Overview:
The LP6 Pro stands as a 6-inch powerhouse, delivering a total of 11,225 lumens and a 200-degree spread of usable LED light through our dedicated Integrated Peripheral Technology (IPT). For optimal performance, the LP6 integrates Direct Ducted Cooling (DDC) technology, allowing efficient air circulation over the rear heat sinks. Featuring colored daytime running light, low power, and high-power modes, the LP6 effortlessly caters to all your lighting needs.
The LP6 Pro suits diverse preferences. The Driving/Combo pattern offers maximum trail coverage with a blend of driving (42 degrees) and spot (8 degrees) optics for both near-field and distance applications.

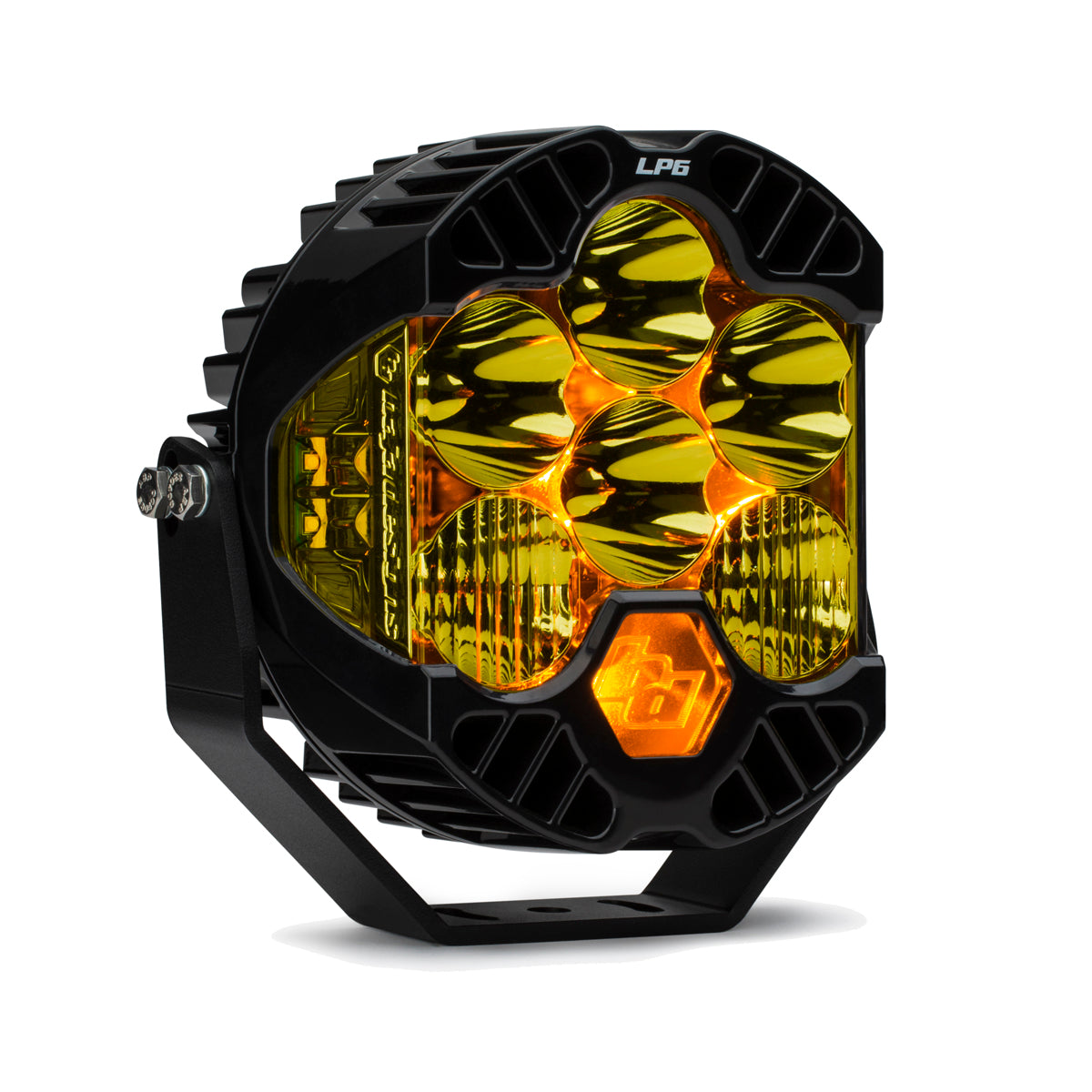

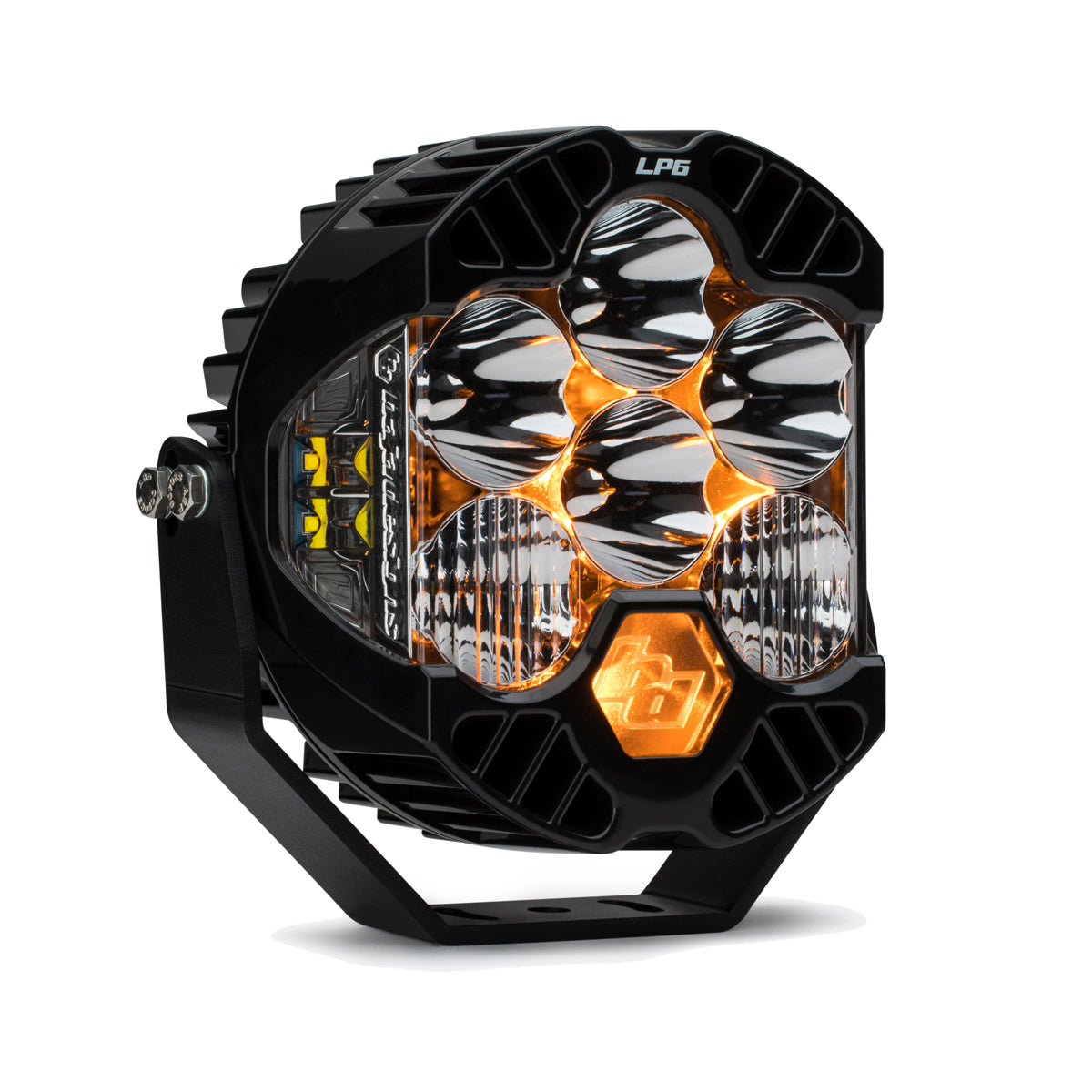

The LP6 Pro comes with Amber back-lighting which matches the marker lights on your truck, for that OEM+ look we love.
Detailed Specs:
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Amperage Rating (A) | 7.500 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.300 |
| Backlight Wattage (W) | 4.140 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 11225 |
| Description | Driving/Combo; Amber |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam/Day-Time Running Backlighting |
| Lighting Quantity | 6 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP6 Pro LED Light Pod |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 103.500 |
| Wiring Harness Included | No |
What's Included:
1 LP6 PRO Light - Combo Beam
1 Powdercoated Mounting Bracket
1 Set of Stainless Mounting Hardware
1 Deutch 4 pin male connector with pins
Wiring harness sold separately
