TRX Hidden Winch Mount | 5th Gen | 2021-2022 RAM TRX

Regular price
$779.00
Sale price
$779.00
Regular price
Sold out
Unit price
per

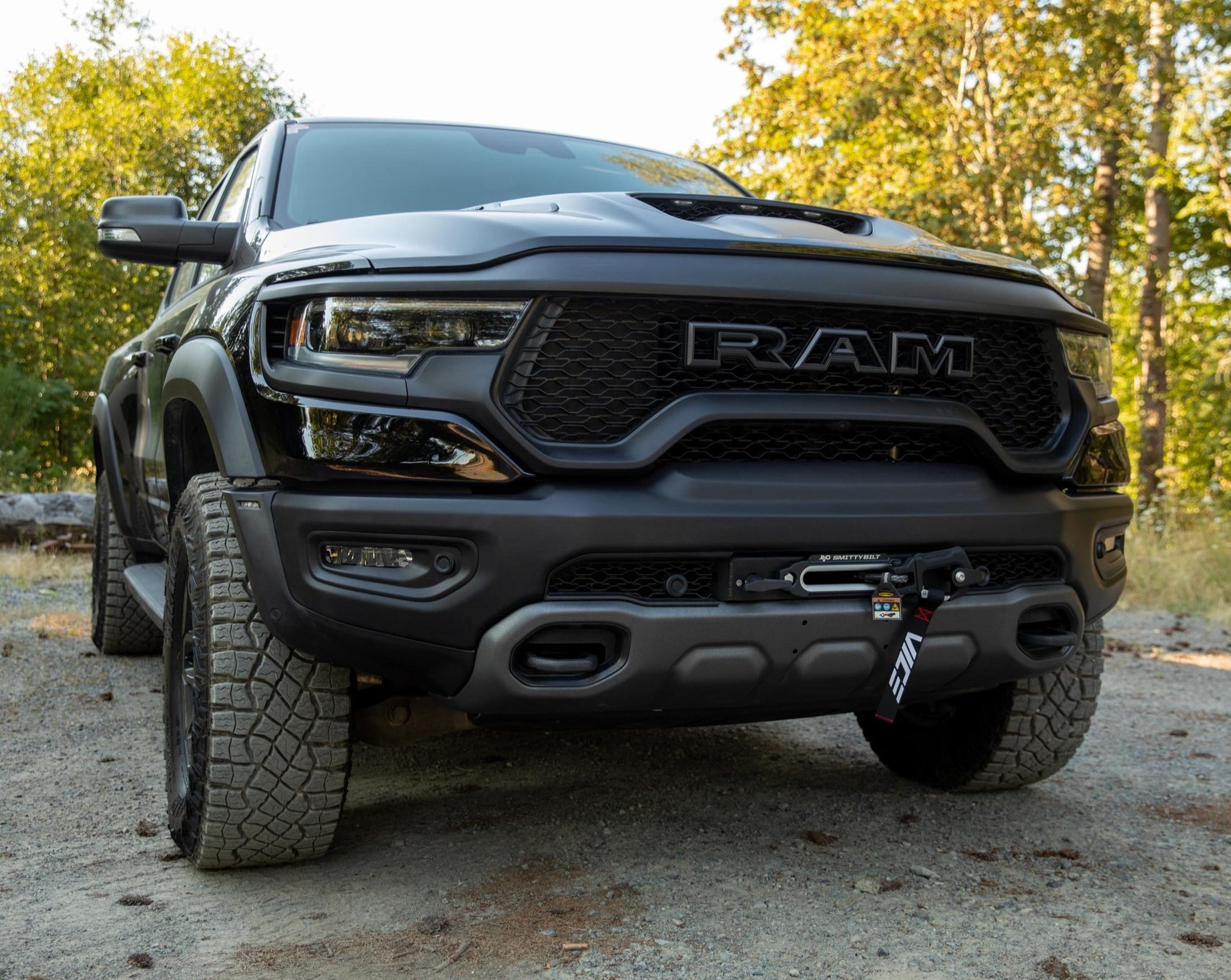

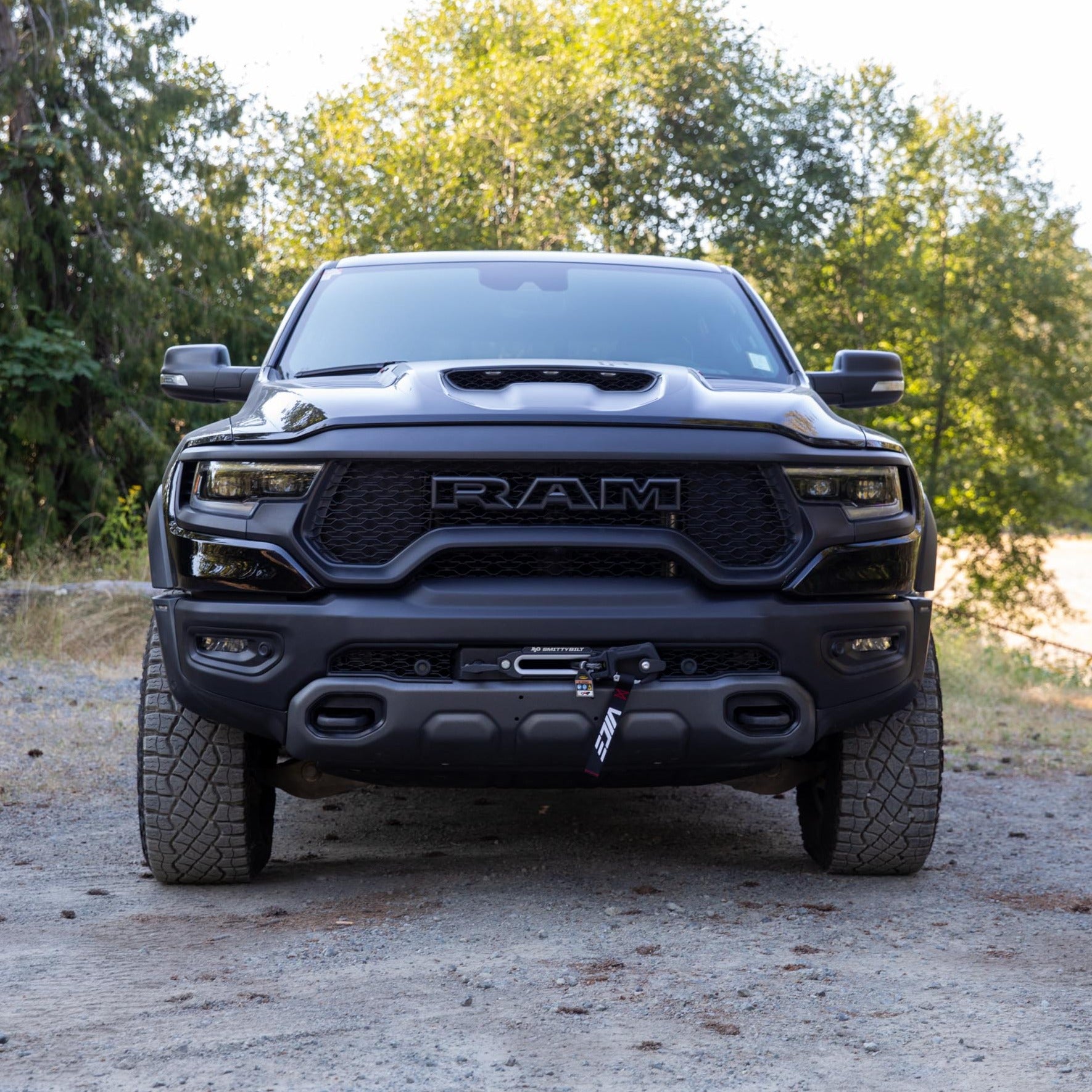

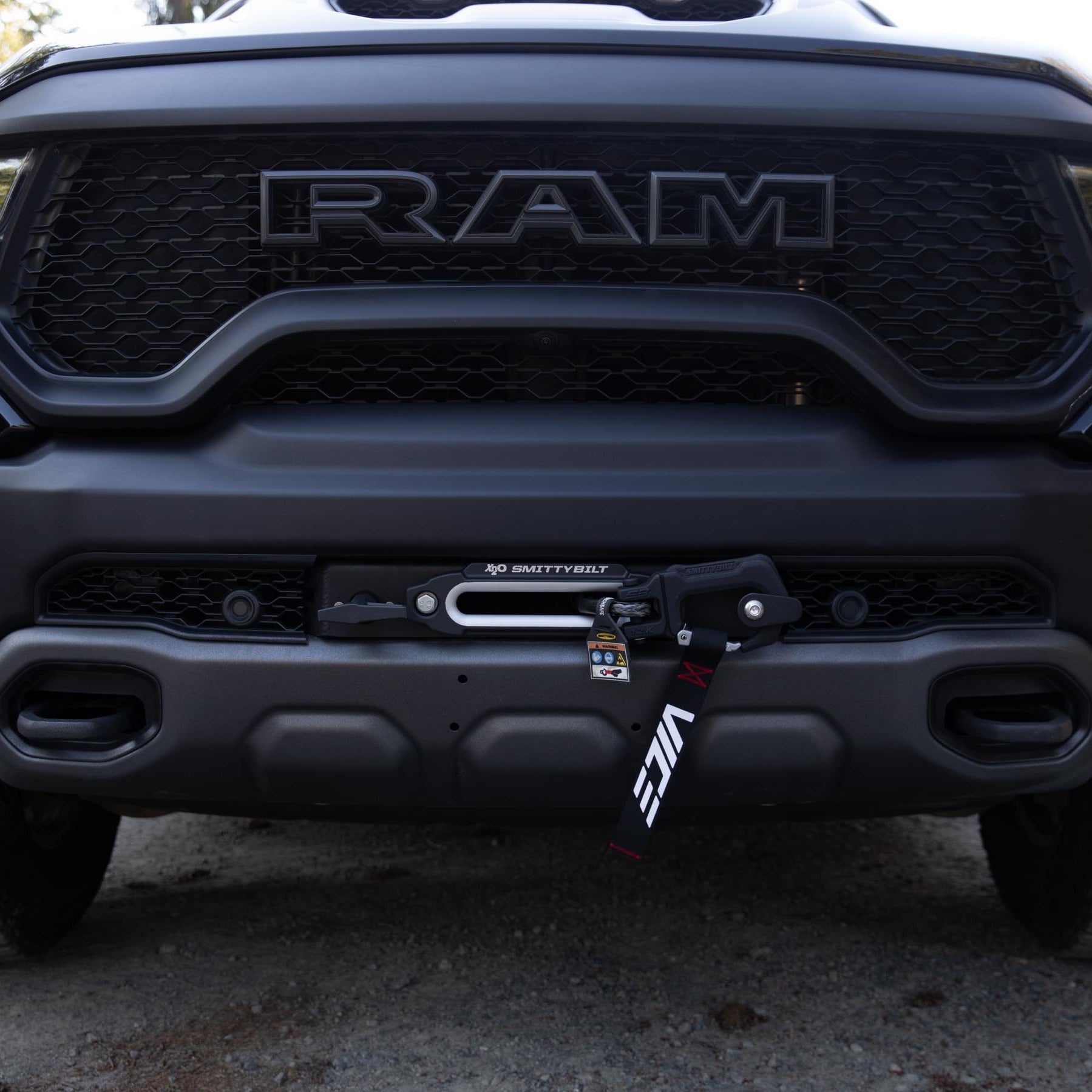

Building off of our extensively proven and industry leading RAM Rebel Hidden Winch Kit, we’re absolutely stoked to introduce the absolute best in hidden winch mount systems for your 2021 - 2022 RAM TRX. Our bracket kit integrates seamlessly behind your factory bumper enabling you to confidently take your RAM TRX further than Mopar ever dreamed.

WHATS INCLUDED?

- All the heavy duty, precision fit brackets required to mount a medium body winch behind your TRX Bumper. This bracket kit is CNC cut and CNC formed before being welded by our skilled crew. The bracket kit is zinc primed and powdercoated in a satin black protective coating.

- Oil Cooler Relocation Bracket. This bracket kit moves your oil cooler from its plastic mount on the backside of the bumper, to a steel one mounted on the sturdy bulkhead of your TRX Frame.

- Hook Anchor Mount

- All required hardware which is graded for strength, and designed for a strait forward installation.

We also highly recommend adding the following options below:

CLUTCH RELOCATION KIT

A BRAND NEW option for our 5th Gen bracket kit is our revolutionary Clutch Relocation Kit! Accessing the clutch handle on select WARN or Smittybilt Winches has never been easier! The Clutch handle is positioned directly beside the fairlead on the bumper giving you rapid and safe access to engage or disengage the winch drum.

There are two options for this:

The WARN VR EVO fits Warn VR EVO PN 103255 and 103253.

The Smittybilt X20 fits the GEN3 X20 Winches PN 98810 and 98812



CONTROL BOX RELOCATION KIT

Want the upmost reliability? Don't forget to add the Control Box Relocation Kit optionThis kit we build moves the brain box of the winch into the engine bay of your truck. This has multiple advantages. Firstly - this makes plugging in your winch controller very easy and safe. Simply pop your hood and plug it in. Secondly - the control box is the least waterproof and most likely part to cause your winch to fail. Moving it to the top of the engine bay keeps the contactors and electrical connections away from submersion in water, mud and road grime. Bolt-on kits currently available for WARN VR EVO and SMITTYBILT X20 Winches.



OH THAT'S NEAT EH

Another component INCLUDED in our mounting kit is the Hook Anchor. No longer worry about rattles and scratching the paint on your bumper by letting your winch hook dangle and flap around at the fairlead. Simply slid the hook over the Anchor, and tension the line. Securely mounted, and easily accessed.

BUMPER GRILL INSERT

If you don't want to cut the plastic front bumper grill in your bumper, you can add our bolt on replacement insert for an easier installation. This insert is made from stainless steel and powdercoated a textured black to match the factory one. There are 2 options for your TRX!

  1. Standard Sensor Version - The TRX comes with front parking sensors.

  2. LED Light Kit - This insert comes with LED Lights! Cleanly position two 8” SD Single Row Light-bars , each packing 3000 lumens, beside your winch fairlead. Also included is a complete plug and play wire harness with relay and switch **Note** This option requires you to disable your front parking sensors as they occupy the same space in the bumper

If you add a clutch handle relocation kit, there will be an access hole in the insert for this accessory. If you do NOT add a clutch handle kit to your order, we will send you an insert which covers this hole in the insert. If you change your mind down the road, you can always purchase the correct replacement insert for your application.

COMPATIBILITY

This mounting kit is designed to work with all 2021 - 2022 RAM TRX Trucks models and configurations.

This hidden winch mount is designed to work with Synthetic Rope winches that come with Hawse fairleads (Roller systems not compatible without custom fabrication. If you’re dead set on using steel cable, Warn sells a compatible Steel Hawse Fairlead (PN WARN 73850)

INSTALLATION

Click Here to Download Installation Instructions

The TRX Hidden Winch kit installs just like our proven 2019-2022 RAM Rebel Kit, which is highlighted in the following detailed instructional video below. In addition to this, additional steps include the relocation of a oil cooler using our easy to install bracket (included), and new skid plate mounts (also included in this kit)

 Product Review:



INTERNATIONAL CUSTOMER INFORMATION

Our business is located on the west coast of Canada and we only charge taxes to Canadian customers. We do not cover import charges for international customers and additional charges will apply (duty tax, etc.) during import to your country.

Please allow 2 weeks for us to prepare and ship your order.
