Building off of our extensively proven and industry leading 4th Gen Hidden Winch Kits, we’re stoked to introduce the absolute best in hidden winch mount systems for your 2019 - 2023 RAM 1500 DT. Our bracket kit integrates seamlessly behind your factory bumper enabling you to confidently take your RAM 1500 further than Mopar ever dreamed!
CLUTCH RELOCATION KIT
An industry first option for our bracket kit is our revolutionary Clutch Relocation Kit! Accessing the clutch handle on select WARN or Smittybilt Winches has never been easier! The Clutch handle is positioned directly beside the fairlead on the bumper giving you rapid and safe access to engage or disengage the winch drum.
There are two options for this:
The WARN VR EVO fits Warn VR EVO PN 103255, 103254, 103253 and 103252
The Smittybilt X20 fits the GEN2 X20 Winches PN 98812 and 98810
CONTROL BOX RELOCATION KIT
Want the utmost reliability? Don't forget to add the Control Box Relocation Kit. This kit we build moves the brain box of the winch into the engine bay of your truck. This has multiple advantages. Firstly - this makes plugging in your winch controller very easy and safe. Simply pop your hood and plug it in. Secondly - the control box is the least waterproof and most likely part to cause your winch to fail. Moving it to the top of the engine bay keeps the contactors and electrical connections away from submersion in water, mud and road grime. Bolt-on kits currently available for WARN VR EVO and SMITTYBILT X20 Winches.
OH THAT'S NEAT EH
Another NEW component INCLUDED in our mounting kit is the Hook Anchor. No longer worry about rattles and scratching the paint on your bumper by letting your winch hook dangle and flap around at the fairlead. Simply slide the hook over the Anchor, and tension the line. Securely mounted, and easily accessed.
BUMPER GRILL INSERTS
Our bracket kit includes a replacement bumper grill insert. We also have three options for you to choose from. Each is made from stainless steel and powdercoated black to match the colour of the stock insert.
-
LED Light Kit - This insert comes with LED Lights! Cleanly position two 8” SD Single Row Light-bars , each packing 3000 lumens, beside your winch fairlead. Also included is a complete plug and play wire harness with switch.
-
Sensor Version - If you have parking sensors, and want to keep them - this is the option for you! Unfortunately there's not enough room for LED lights and Sensors so you have to choose what you want more!
-
Blank - Blacked out cover for those who don’t require the additional lights, or parking sensors.
COMPATIBILITY
This mounting kit is designed to work with 2019 - 2022 RAM 1500 DT Trucks that came equipped with GAS motors. These are the 3.6L Pentastar V6 engine, and the 5.7L Hemi V8 engine. E-torque compatible as well.
If you have the REBEL package, please navigate back to the 2019-2021 RAM REBEL Hidden Winch Mount
Have the active air dam? No problem this kit works with that feature!
Note: This system is not compatible with vehicles equipped with the new ECO-Diesel Engine at this time.
This hidden winch mount is designed to work with Synthetic Rope winches that come with Hawse fairleads (Roller systems not compatible without custom fabrication. If you’re dead set on using steel cable, Warn sells a compatible Steel Hawse Fairlead (PN WARN 73850)
WHAT WINCH SHOULD I CHOOSE?
We've hand picked two winches that work fantastic with our mount, and developed a suite of aftermarket upgrades for them that make using our kit safe, fun and easy.
WARN VR EVO and SMITTYBILT X20 GEN3
Why these two?
-They're strong and wont weight down your suspension.
- Completely Waterproof (IP68)
-Built in wireless controls
-Equipped with Synthetic Line (safer, lighter, and easier to handle)
-Tons of pulling power in a compact package.
-Clockable clutch handle
- Relocatable Control Box
Our winch mounts are compatible with other medium body winches that use the same bolt pattern (10" x 4.5"). If you'd like to use another brand winch and are unsure if it will fit, please send us a message.
INTERNATIONAL CUSTOMER INFORMATION
Our business is located on the west coast of Canada and we only charge taxes to Canadian customers. We do not cover import charges for international customers and additional charges will apply (duty tax, etc.) during import to your country.
Please allow 2 weeks for us to prepare and ship your order.
INSTALLATION
Check out the straight-forward installation video and other media on this product below!!
Video Review:
Customer Reviews
Awesome product. Works great and is exactly what i wanted
Well made and finished product. Fitting was easy. Very fast delivery all the way to Australia. Was faster than communicated.
Good communication from order taken to shipping. Very happy with the process and finished item on my 2022 RAM 1500 DT.
Well made. Good quality. Highly recommend.
Customer support was great
The only thing I suggest is DON'T package items separately. My items got separated by courier and arrived weeks apart and the late package got damaged I guess because the courier had it kicking around for so long.
Fairly easy install. Great design. Highly recommend this product. The control box relocation kit is a must have. It will extend the life of your winch electronics.

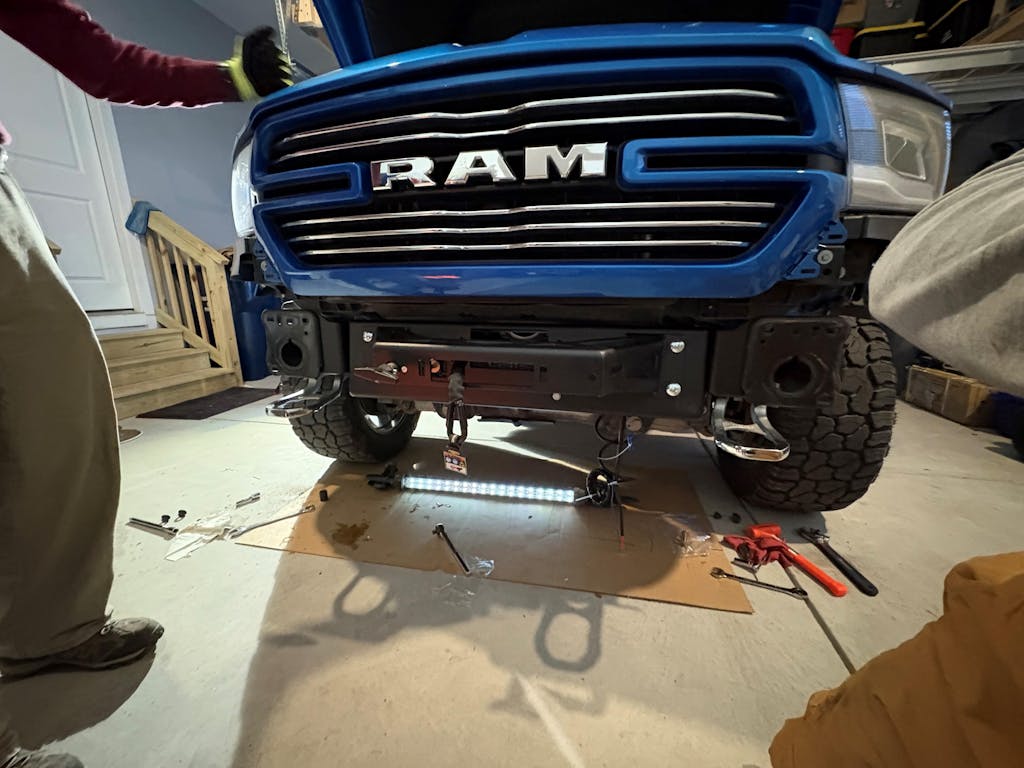

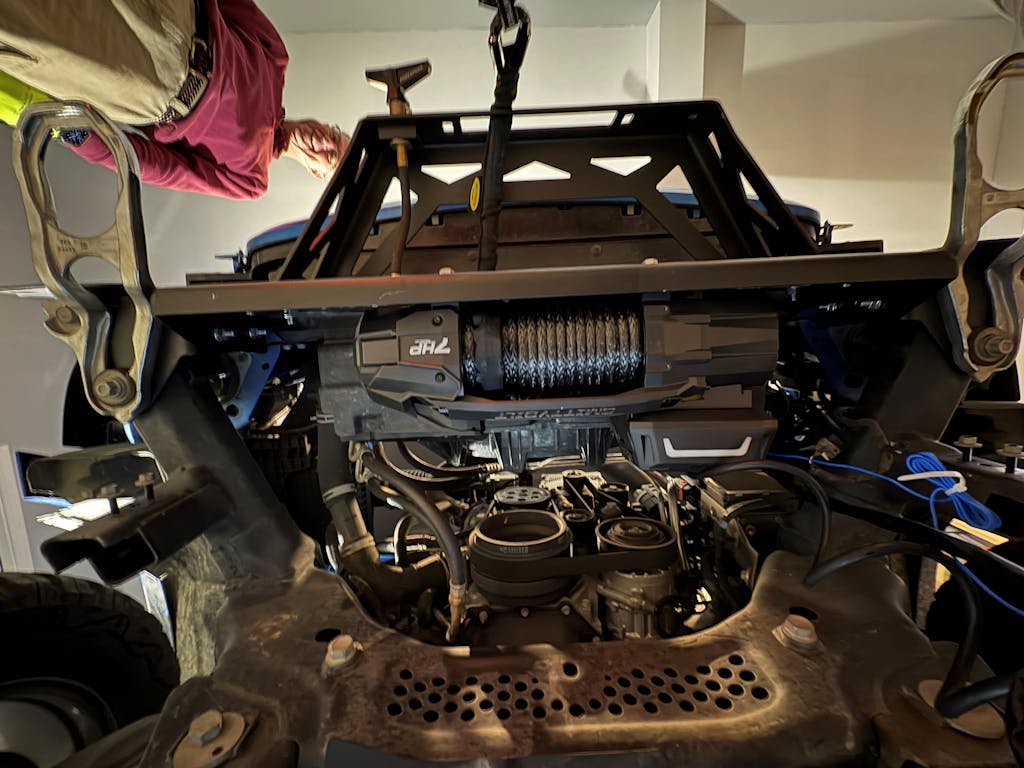

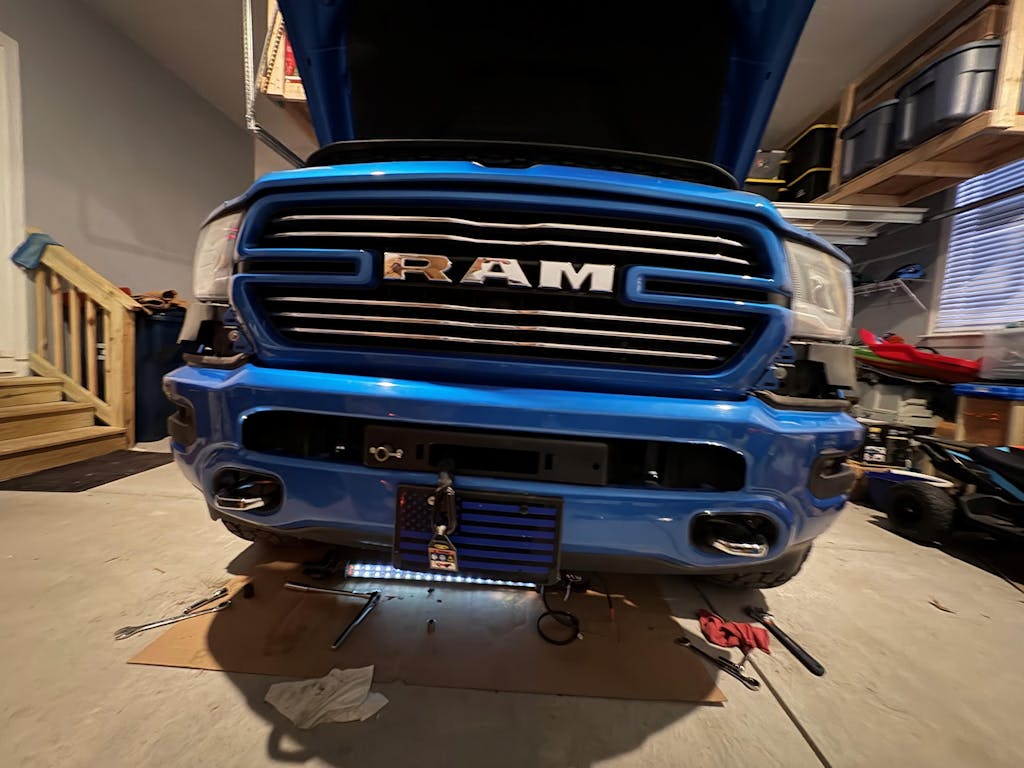

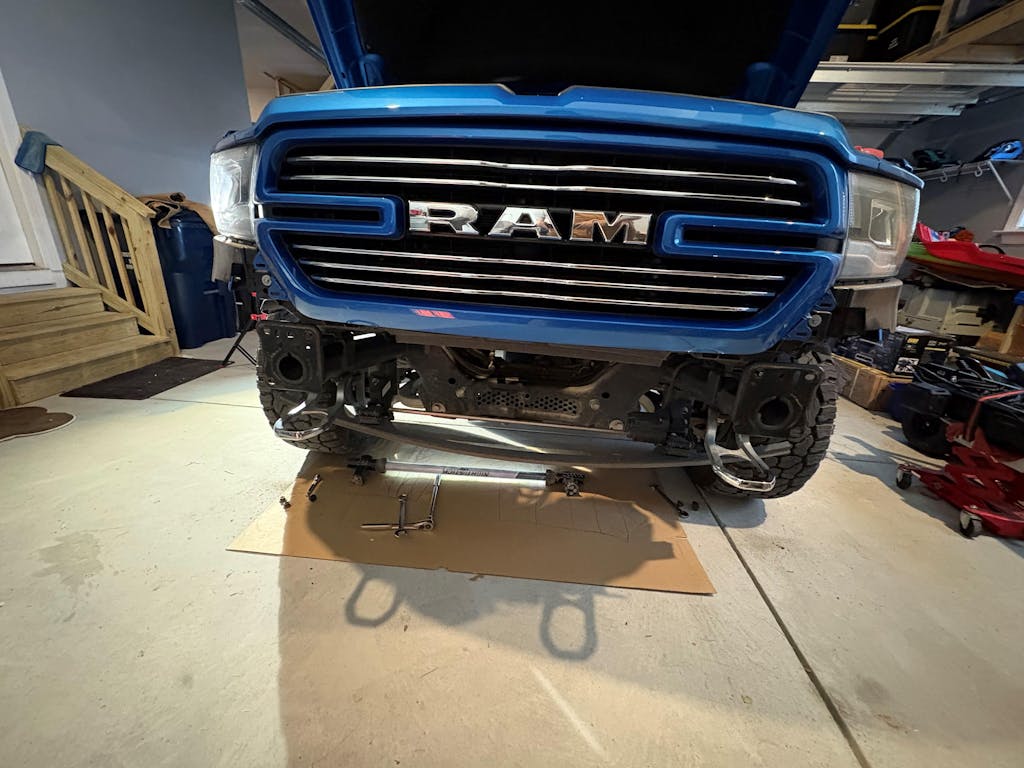

Ordered the kit for the 2021 1500 DT w/the WARN 12-S winch. The video is a big help navigating the body panel removal. Took me 6 hours from start to finish. It's more of a 3 man job especially going back on with the bumper. The insert for the parking sensors worked well although the close out is a bit rough. Overall I'm very impressed on the engineering and fit and finish of the main winch mounting and how well it ties in with the tow hooks. I've gotten alot of compliments. I can still park my truck in the garage!
