The FNG 5 is the latest 5” pod technology. We’ve packed the latest 4 12w Osram LED chips in a compact housing. The reflector comes hot off the press with a monster Hyper-Spot beam pattern that can be changed to flood or combo with easy snap-on covers. It’s all connected by a rugged weather-resistant enclosure that can be mounted practically anywhere and will withstand demanding environments.
BEAM PATTERNS

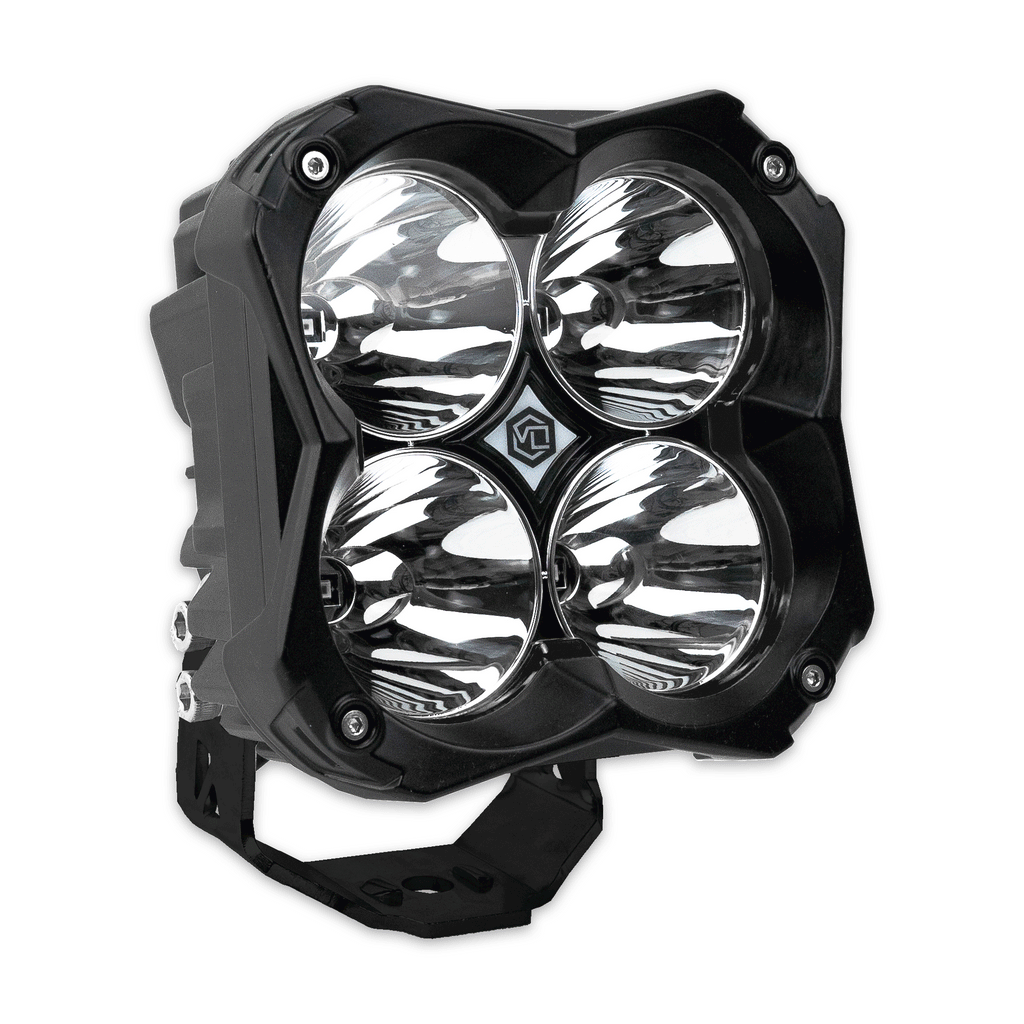

Hyper Spot - All the FNG 5 series come with hyper-spot beam patterns. This beam pattern is best used for maximum distance in off-road or racing applications. The beam pattern is concentrated in a circular hotspot straight ahead of the vehicle. These can be very effective for off-road high-speed motor vehicles. The Intense series Hyperspot cubes give you the off-road reassurance that you need. In order to make your car or truck stand out, you can buy custom covers from our store that come in different colours and beam patterns.

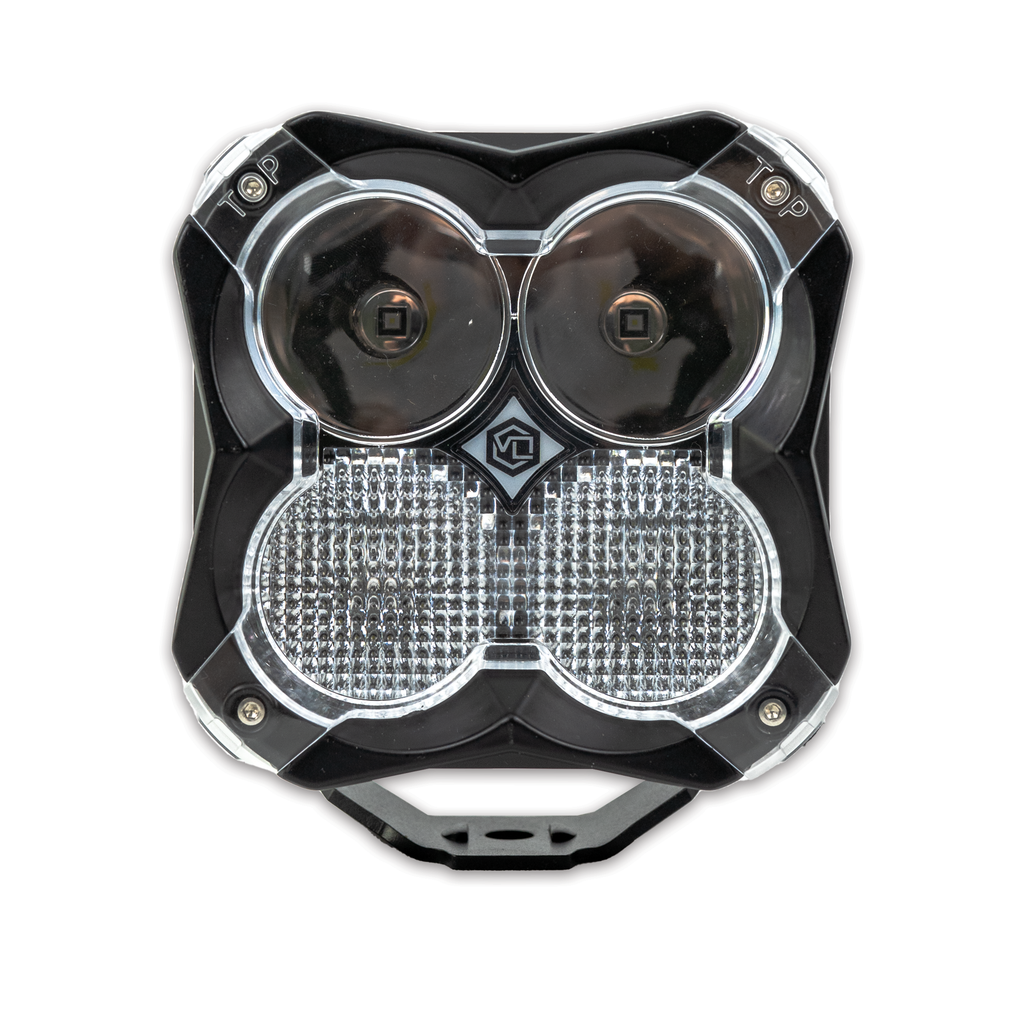

Combo - The FNG 5 series has combo beam pattern lens covers which combine the patterns of hyper spot and flood for a good in-between.
FEATURES
Waterproof Rating: FNG 5” Series meets the IP67 water and dust proof standard rating. It is 100% protected against solid objects like dust and sand. It has been tested to work for at least 30 minutes under 1m (3ft) of water.

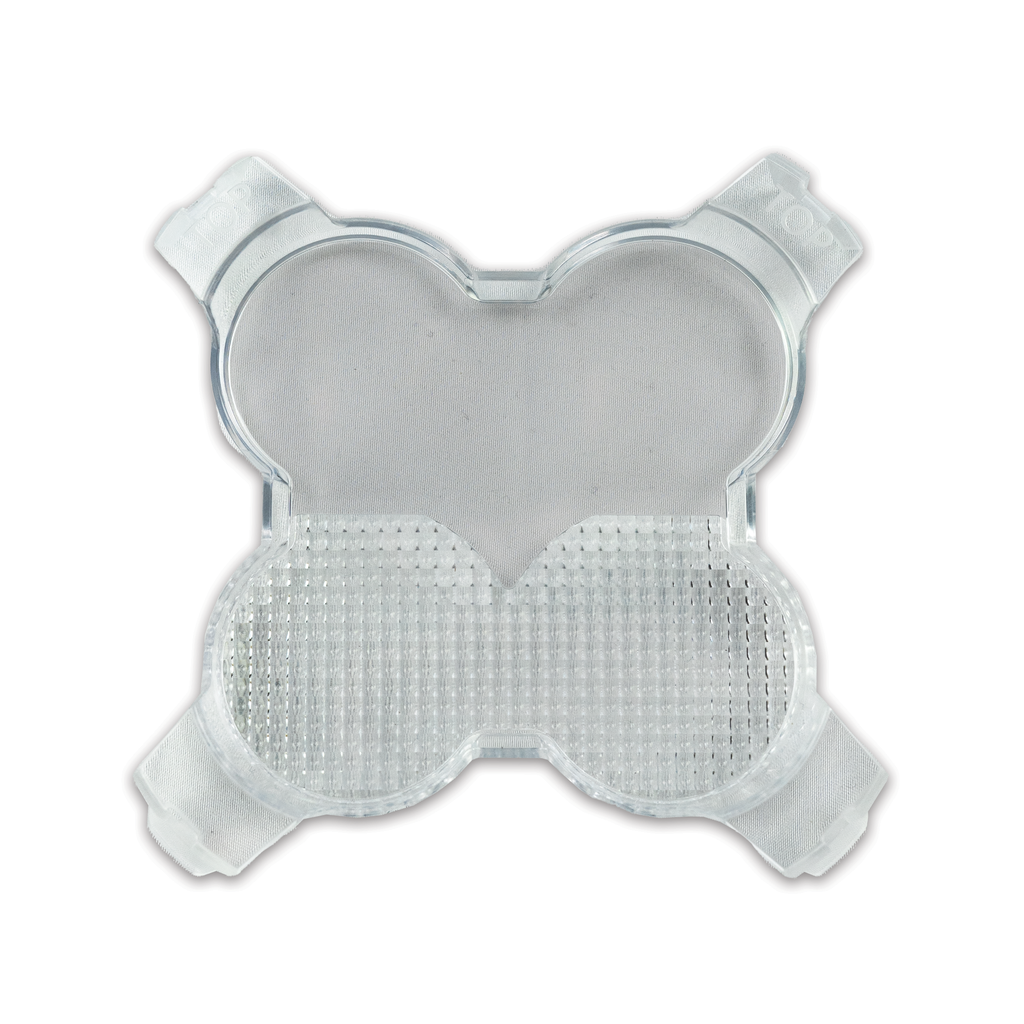

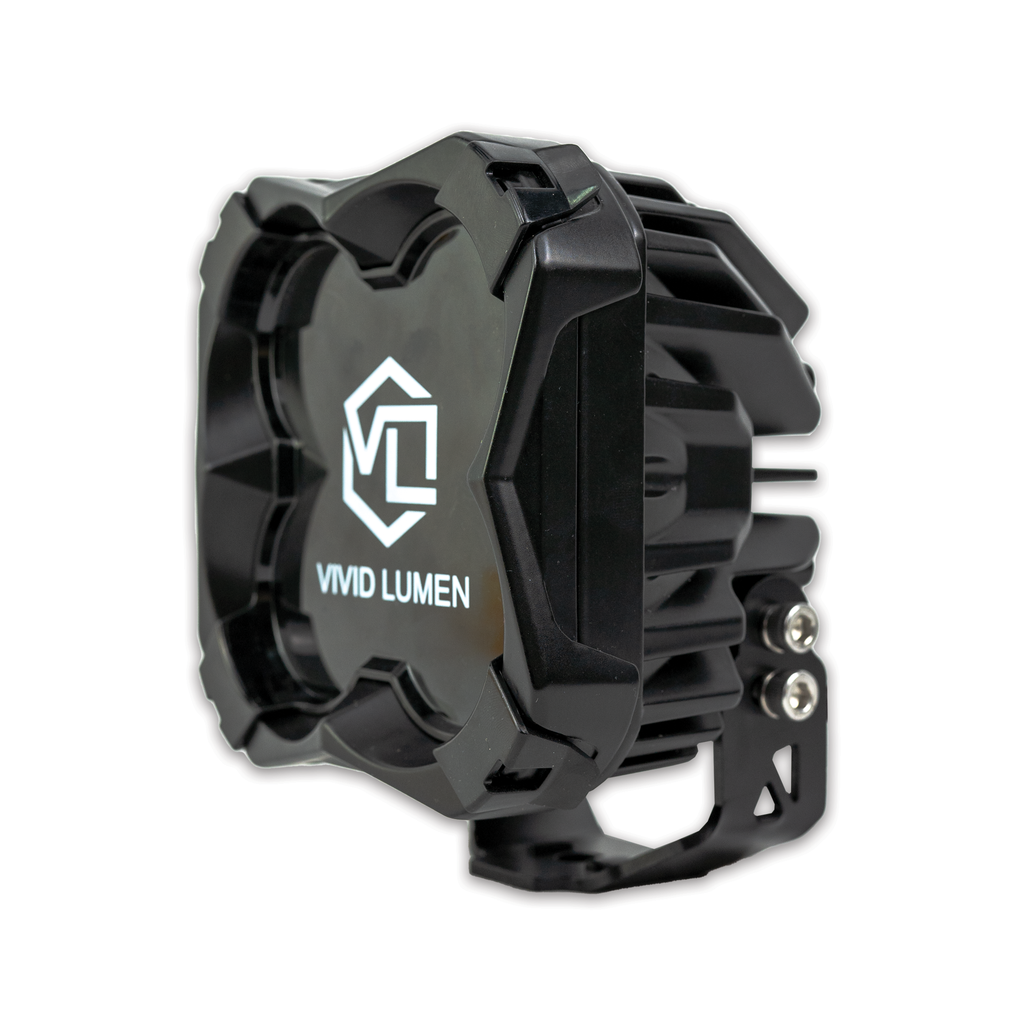

Interchangeable Lens Cover: All the FNG 5” series lights are equipped with black covers for street legal compliance and to protect them from stones and debris. You can easily change your beam pattern on the fly by adding additional covers to adapt to weather or driving conditions.
High-Intensity Osram LEDs: The FNG series Packs A Serious Punch! Each circuit board is composed of 4 x 12W high-intensity Osram LED chips with a total of 48w per assembly.
Thermal Management: Unlike other designs, the FNG series are equipped with large heat fins that allow the LED chips to cool properly for extended use. Engineered to perfection the FNG Series Will last you a lifetime!
Mount-It Your Way: Installation is simple and convenient which makes it easy to install and saves you time. FNG 5 Series comes with a U-type adjustable mounting bracket that adjusts the led driving light the way you like.
Warranty: Vivid Lumen Industries Lifetime Warranty protects your Performance LED Lights from LED Failure, Manufacture Defects, and Condensation/Moisture for the lifetime of the Products.

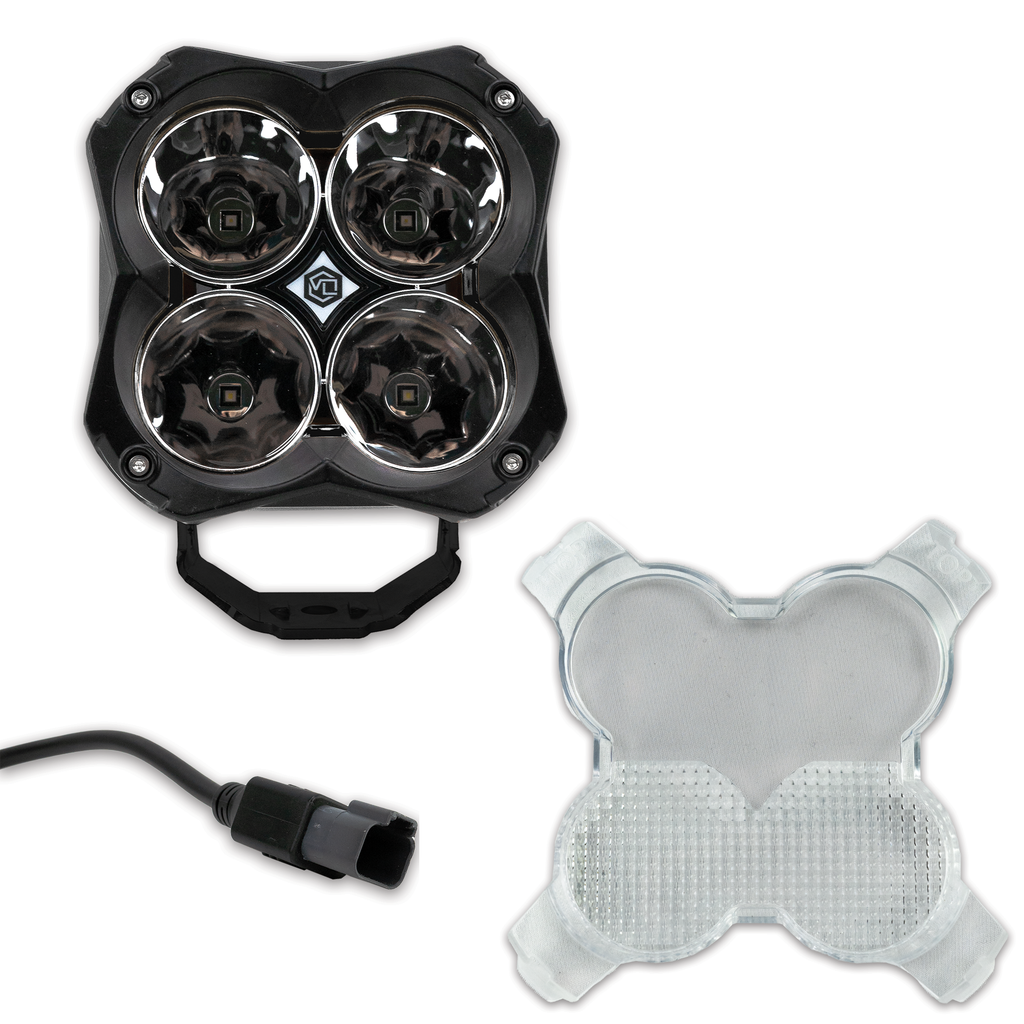

What's In The Box:
- 1x FNG Intense 5" Pod
- 1x Black Cover
- 1x Combo White Cover
Downloads and Specifications:
| LIGHT OUTPUT: | 7,850 Lumens (Per Light) |

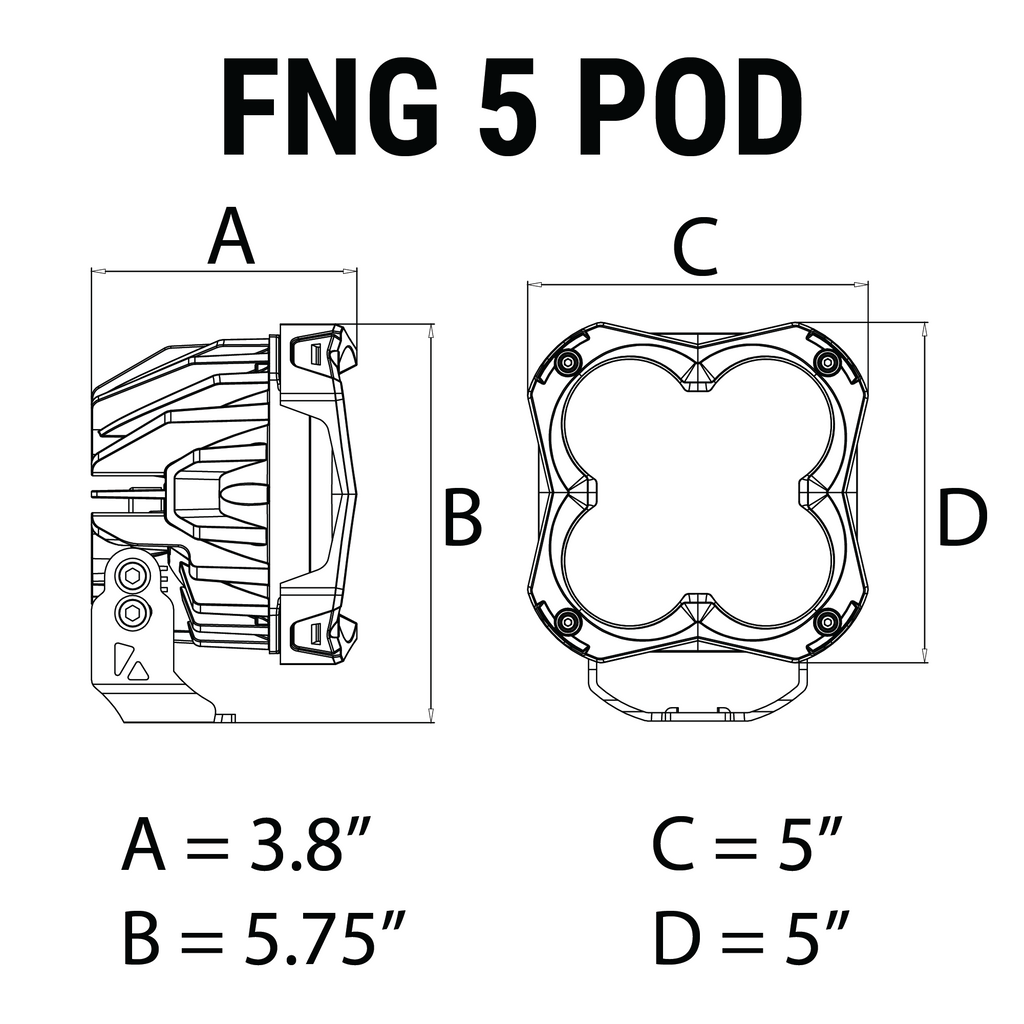

| DIMENSIONS: | 4.95” x 3.6” x 4.95” |
| LED CHIP: | Osram |
| OPTICS: | Hyper Spot |
| WATTS: | 48w |
| CURRENT: | 4.12A @12v |
| CONNECTION: | 2 Pin Deutsch |
FNG 5 DETAILED INFORMATION PDF
